The fuel rail pressure sensor is a critical component in modern diesel engines, ensuring optimal performance and efficiency. This small but mighty device monitors the fuel pressure within the fuel rail, relaying real-time data to the engine control unit (ECU). By maintaining precise fuel delivery, it plays a pivotal role in engine performance, emissions control, and fuel economy. In this article, we'll explore the function, importance, fuel sensor location, and fuel rail pressure sensor symptoms, along with diagnostic and maintenance tips.
Introduction to Fuel Rail Pressure Sensor
A fuel pressure sensor is an essential part of a diesel engine's fuel injection system. It measures the pressure of fuel in the fuel rail, a component that distributes fuel to the injectors. By providing accurate pressure readings, the sensor ensures the engine receives the right amount of fuel for combustion. A malfunctioning sensor can lead to poor engine performance, increased emissions, and even engine damage. Understanding its role and fuel sensor location is crucial for vehicle owners and mechanics alike.
Function of the Sensor in Diesel Engines
The fuel rail pressure sensor monitors the pressure of fuel as it flows through the fuel rail. In diesel engines, high-pressure fuel is necessary for efficient combustion. The sensor sends real-time data to the ECU, which adjusts fuel delivery based on driving conditions, engine load, and throttle input. This ensures optimal combustion, improving power output and fuel efficiency while minimizing emissions. Without a functioning sensor, the engine may struggle to maintain consistent performance.
Importance of Accurate Fuel Pressure Monitoring
Accurate fuel pressure monitoring is vital for several reasons. First, it ensures the engine operates within the manufacturer's specified pressure range, preventing over- or under-fueling. Over-fueling can lead to excessive smoke, poor fuel economy, and damage to engine components, while under-fueling can cause misfires and reduced power. The fuel pressure sensor also helps reduce harmful emissions by maintaining precise fuel delivery, which is critical for meeting environmental regulations.
Also read: How to Increase Fuel Mileage on a Diesel Pickup
Common Symptoms of a Faulty Sensor
A failing fuel rail pressure sensor can cause several noticeable issues. Here are the most common fuel rail pressure sensor symptoms:
- Check Engine Light: A faulty sensor often triggers a diagnostic trouble code (DTC), illuminating the check engine light.
- Poor Acceleration: Inconsistent fuel pressure can lead to sluggish acceleration or power loss.
- Engine Misfires: Incorrect fuel delivery may cause the engine to misfire or run rough.
- Hard Starting: A malfunctioning sensor can make it difficult to start the engine, especially when warm.
- Reduced Fuel Efficiency: Improper fuel pressure regulation can lead to excessive fuel consumption.
- Black Smoke from Exhaust: Over-fueling due to a faulty sensor may produce excessive black smoke.
If you notice these symptoms, it's time to inspect or test the sensor.
Typical Location in Diesel Vehicles

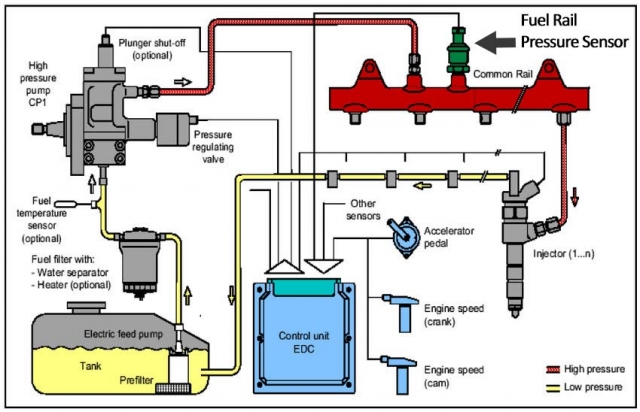

The fuel sensor location varies depending on the vehicle make and model, but it is typically found on or near the fuel rail. In diesel engines, the fuel rail is a metal pipe that delivers high-pressure fuel to the injectors. The sensor is often mounted directly on the fuel rail or connected via a short fuel line. Common locations include:
- Near the top of the engine, close to the fuel injectors.
- On the side of the fuel rail, secured with bolts or a threaded connection.
- In some vehicles, it may be tucked beneath other components, requiring removal of covers or air intake systems for access.
Always consult the vehicle's service manual for the exact fuel sensor location.
How the Sensor Interacts with the ECU
The fuel rail pressure sensor works in tandem with the ECU, the brain of the engine. The sensor converts fuel pressure into an electrical signal, which is sent to the ECU. Based on this data, the ECU adjusts the fuel pump's output and injector timing to maintain optimal pressure. This closed-loop system ensures the engine adapts to varying conditions, such as acceleration, idling, or heavy loads. A faulty sensor can send incorrect signals, causing the ECU to miscalculate fuel delivery.
Read more: The Powerstroke 7.3 ICP Sensor Guide
Types of Fuel Rail Pressure Sensors
There are two primary types of fuel pressure sensors used in diesel vehicles:
- Piezoelectric Sensors: These use a crystal that generates voltage when subjected to pressure changes. They are highly accurate and commonly used in modern diesel engines.
- Strain Gauge Sensors: These measure pressure through a diaphragm that deforms under pressure, altering electrical resistance. They are durable but less common in newer vehicles.
Each type is designed to withstand the high pressures of diesel fuel systems, typically ranging from 20,000 to 30,000 PSI.
Diagnostic Tips for Sensor Issues
Wondering how to test fuel pressure sensor functionality? Follow these steps:
- Check for Diagnostic Trouble Codes: Use an OBD-II scanner to retrieve codes related to fuel pressure or sensor issues.
- Visual Inspection: Check the sensor and its wiring for damage, corrosion, or loose connections.
- Test Voltage Output: Use a multimeter to measure the sensor's voltage output while the engine is running. Compare readings to manufacturer specifications.
- Fuel Pressure Test: Use a fuel pressure gauge to verify actual fuel pressure against the sensor's reported values.
- Inspect Fuel System: Ensure the fuel pump, filter, and lines are functioning properly, as issues here can mimic sensor problems.
If the sensor is faulty, replacement is often the best solution.
Replacement and Maintenance Guidelines
Replacing a fuel rail pressure sensor requires care to avoid damaging the fuel system. Here's a step-by-step guide:
- Safety First: Disconnect the battery and relieve fuel system pressure to prevent fuel spray.
- Locate the Sensor: Refer to the vehicle's manual to find the fuel sensor location.
- Remove the Sensor: Carefully disconnect the electrical connector and unscrew the sensor from the fuel rail.
- Install the New Sensor: Use a new, OEM-quality sensor and torque it to the manufacturer's specifications.
- Reconnect and Test: Reconnect the battery, start the engine, and check for leaks or warning lights.
Regular maintenance, such as replacing fuel filters and inspecting fuel lines, can prevent sensor issues. Always use high-quality fuel to avoid contamination, which can damage the sensor.
Conclusion
The fuel rail pressure sensor is a vital component in diesel engines, ensuring precise fuel delivery for optimal performance and efficiency. By understanding its function, fuel sensor location, and fuel rail pressure sensor symptoms, vehicle owners can quickly identify and address issues. Regular maintenance and timely replacement of a faulty sensor can prevent costly repairs and keep your engine running smoothly. If you suspect sensor problems, use the diagnostic tips outlined above or consult a professional mechanic to restore your vehicle's performance.
